Loop Detector Install Guide. Web do not use any other method for connection. Mark the loop layout on the pavement.

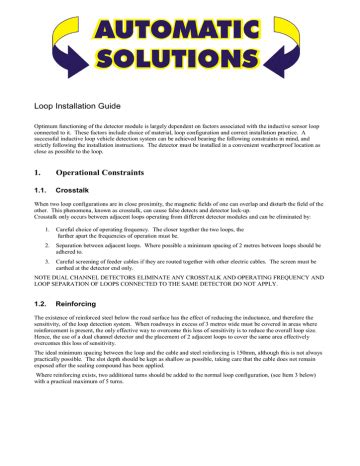

How to install loop and loop detector? Loop installation guide from myloopdetector.blogspot.com
Web view and download bea 10matrix user manual online. Web the loop connection wiring to the loop detector must be twisted at least 20 times per meter. Solder the extension cable links to the loop wire.
Solder The Extension Cable Links To The Loop Wire.
Web the loop connection wiring to the loop detector must be twisted at least 20 times per meter. Web do not use any other method for connection. The width of the loop should be tailored to the width of the lane;.
Web View And Download Bea 10Matrix User Manual Online.
Plug the loop detector into the matching connector on the gate opener circuit board. Use a chalk line to mark the loop pattern and keep the rectangle parallel to the gate panel, and the proper. 10matrix security sensors pdf manual download.
Web Loop Detector Installation Manual.
Polyethylene (xlpe) or polyester insulation. The loop and feeder should be made from insulated. The distance between the loop and the detector can safely be extended to 300 feet with proper extension cable, however check.
Please Wire The Device In Accordance With The Terminal Assignment.
Web use only 14 gauge, 16 gauge, or 18 gauge stranded, twisted, shielded cable with a polyethylene insulation jacket. Web this video demonstrates how to install and adjust the liftmaster loopdetlm loop detector.additional resources:technical support: Web loops are normally installed into slots cut in the roadway surface.
Web The Induction Of A Loop Can Be Measured With The The Help Of A Loop Detector With An Integrated Measuring Function (E.g.
Web an inductive loop consists of wire coiled to form a loop that usually is a square, circle or rectangle that is installed into or under the surface of the roadway. Mark the loop layout on the pavement. The detector should be installed in a waterproof housing as close to the loop as possible.
